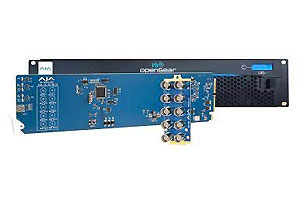

OG-12GDA-2x4 openGear
Dual 1x4 12G-SDI Distribution Amplifier
AJA OG-12GDA-2×4 is an
openGear compatible, state of the art 12G-SDI
distribution amplifier. The incoming 12G-SDI signals
on the dual input channels are automatically
equalized and the outputs are automatically
reclocked to four 12G-SDI outputs each. This dual
input capability allows double the number of DAs in
limited frame space. A 10x BNC rear connector module
is included.
Designed for use in high density
openGear 2RU frames including AJA’s OG-X-FR frame,
new DashBoard software support on Windows, macOS and
Linux offers remote control and monitoring of the
openGear architecture and provides convenient and
industry standard configuration, monitoring and
control options over a PC or local network.
Connectivity
The 12G-SDI inputs are
automatically equalized and the outputs are
automatically reclocked with best in class input
jitter tolerance. SDI rates of 270Mb, 1.5Gb, 3Gb,
6Gb and 12Gb are supported. Two SDIs inputs and
eight SDI outputs are provided. A 10x BNC rear
openGear connector module is included.
Features:
• Dual 1x4 12G-SDI
openGear Distribution Amplifiers
• 2x 12G-SDI BNC inputs
• 8x noninverting 12G-SDI BNC outputs
• Format
agnostic 270 Mbps – 12 Gbps video formats
•
Automatic input equalization and output reclocking
• Support for HDR video
• Passes embedded audio,
all ancillary data including closed caption and time
code
• Input Present and Input SMPTE Lock LEDs
• 10x 12G-BNC rear connector module included
•
Power: 4.5 watts
• Hot swappable
• DashBoard
Support with OG-X-FR, OG-3-FR and DFR-8321 openGear
frames
| Video Formats |
150 Mbps – 12 Gbps, format agnostic |
| Video Input Digital |
2x 12G-SDI BNC, SMPTE-259/292/424/2081/2082 |
| Video Output Digital |
8x 12G-SDI BNC, SMPTE-259/292/424/2081/2082, non-inverting |
| Cable Equalization |
(Belden 1694A coax)
- 12 Gbps, 45m
- 6 Gbps, 90m
- 3 Gbps, 140m
- 1.5 Gbps, 185m
- 270 Mbps, 365m
|
| Reclocking |
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
- All other rates are passed through and not reclocked
|
| User Interface |
openGear DashBoard network control software via Windows, macOS or Linux |
| Size (w x d x h) |
- openGear standard form factor, front slot and rear card.
- Two slots required for each card.
|
| Weight |
0.5 lb (0.3 kg) |
| Power |
openGear frame compatible, 4.5 watts max per card |
| Environment |
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
|
|
