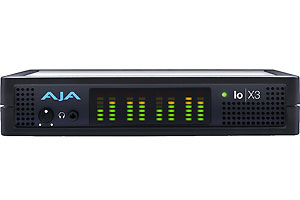

AJA Io X3 Multi-Channel 2K/HD/SD Video I/O over Thunderbolt™ 3

AJA Io X3 is perfect for high-quality HDR or SDR video work with up to 60p HD/2K signals or files with support for all major NLE applications as well as other video applications such as OBS Studio, vMix, and Telestream Wirecast. Connecting with a single Thunderbolt 3 cable and providing a second Thunderbolt connector for flexibility, Io X3’s compact and quiet form factor is ideal for on-set, in the studio, at an event, or in the edit suite.

Versatile and Practical Connectivity

The Io X3 rear panel offers a wealth of easy-to-access connectivity for almost any need in SD/HD/2K video pipelines. Power is supplied via industry standard 4-pin XLR with either the included AC adapter or battery power. Dual Thunderbolt 3 ports provide host connectivity to a laptop or desktop PC or Mac, with the second port for looping through to other Thunderbolt devices. RS-422 is included for machine control of external devices so they can be synchronized for editing. Analog audio is offered via a DB-25 port, with all 8-channels configurable to be in or out. HDMI in and out ports allow for easy monitoring or video input sources to be accessed, including HDR and SDR video. Reference input connects the Io X3 to any master clock source alongside LTC input and output for timecode. Finally, 4 bidirectional 3G-SDI ports can be configured as multi-channel inputs or outputs to suit the video application of choice, offering immense flexibility in the field, editing suite, or on-set.

Universal Compatibility:

Thunderbolt™ 3 via USB-C Io X3 Plus provides two Thunderbolt 3 ports for true Thunderbolt flexibility.

Thunderbolt 3 doubles the speed of the previous Thunderbolt 2 standard with up to 40 Gps of throughput and utilizes the universal USB-C connection standard for true simplicity over a single cable for today’s leading Mac and PC workstations and laptops.

Thunderbolt™ 3 features:
Thunderbolt™ and power on one cable
USB-C connector and cables (small, reversible)
40 Gb/s: Thunderbolt™ 3 – double the speed of Thunderbolt™ 2

Integrated Digital Audio, Analog Audio Flexibility

Embedded 16-channel SDI and 8-channel HDMI audio are supported as well as analog audio inputs, outputs or both via a standard Tascam DB-25 connection.

Stereo monitoring is also possible with a front panel 3.5mm mini-TRS headphone jack.

The flexible analog audio I/O can be configured to record voiceovers and more with the ability to choose how the DB-25 connection on Io X3 is configured:

8-channel, 24 and 16-bit D/A analog audio, 48 kHz sample rate, balanced, using industry-standard 8x XLR or TRS on DB-25 breakout cable (cable not included)
Balanced Analog Audio I/O:
Input across Ch. 1-8, Ch. 1-4, or Ch. 5-8
Output across Ch. 1-8, Ch. 1-4, or Ch. 5-8

High Density, Rack Mountable

Io X3’s compact design offers easy rack mounting, allowing for two Io X3 devices to sit comfortably in just 1RU. This allows for high channel density for up to 8-channels of fully configurable video I/O for applications such as OBS Studio.\

Multiview Output

Io X3 offers multi-channel I/O, and the HDMI output port can display all of these sources on one display. Io X3 is fully compatible with OBS Studio software with multiview output offered for clear monitoring of incoming or outgoing video via the convenient HDMI output. OBS Studio can be configured with Io X3 to make monitoring easy, all from a single I/O device.

Sync Up

Io X3 can be locked to an external reference for integration into larger productions, or feed LTC in and out to ensure footage captured with Io X3 has the proper timecode. The REF in port ensures reference sync with other synched devices in a facility.

Machine Control

An RS-422 port allows control of tape decks for frame-accurate captures and layoffs.
