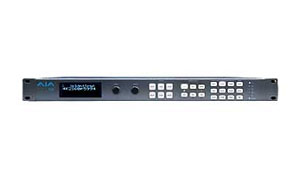

AJA FS4 4-Channel 2K/HD/SD or 1-Channel 4K/UltraHD Synchronizer/Converter

Real Time HDR/WCG Conversion with the Colorfront Engine™ Video Processing

AJA FS4 utilizes standard BNC as well as optional SFP inputs and outputs to integrate easily into a variety of workflows and facilities with support for SDI workflows all the way up to 12G.

AJA FS4 has Coax and Fiber* inputs and outputs to accept 4K/UltraHD/2K/HD/SD resolution signals in Single Channel Mode. In Four Channel Mode 2K/HD/SD inputs can be routed to multiple locations simultaneously without the need for any external signal distribution.

A looping Reference Input allows the FS4 to be locked to your house reference signal for rock solid stability.

Digital Audio can be disembedded and embedded between SDI, MADI, and AES for an incredible array of routing possibilities.

Up, Down, Cross-Conversion

Moving to 4K is never an instant change. Legacy signals and archival material need to be integrated into the 4K environment, while 4K/UltraHD sources need to be down-converted for current 2K/HD pipelines.

Utilizing AJA’s remarkable conversion algorithms, AJA FS4 supports up, down, cross-conversion from 2K/HD/SD to 4K or UltraHD. Both Square Division (SQD) and Two Sample Interleave (2SI) pixel mapping formats are supported.

AJA’s powerful hardware conversion technology ensures the highest image quality for your productions. Key conversion features include:

• 4K/UltraHD/2K/HD/SD up, down-conversion
• SD/SD aspect ratio conversion
• HD/HD cross-conversion (720p/1080i)
• All done in beautiful 10-bit with dedicated hardware.

12G/6G HD-BNC and Fiber SFP Options

FS4’s SFP options include both 12G/6G-SDI HD-BNC and LC Fiber I/O options, including single and dual channel Single Mode options and Multi-Mode options, allowing great SDI flexibility and fiber cable runs of up to 10 kilometers to be connected directly to the FS4 without the need for separate fiber to SDI conversion. Also available are 3G-SDI Fiber LC and SC SFP options.

Massive Audio Flexibility

The growth of 5.1 and 7.1 audio has increased the number of audio channels that must be managed in production. The MADI standard provides a convenient way to transport huge numbers of audio channels along a single cable, simplifying the cabling demands for broadcasters, mobile trucks, and production. FS4 supports both fiber and coax MADI input and output. An internal 277 x 208 mono audio matrix allows you to route 1 to 1, or 1 to many, with full routing of MADI, mixdowns, and all audio coming from SDI, fiber, and AES sources for an incredible amount of audio processing capability in a single box.

FS4 also offers high quality Sample Rate Conversion (SRC) on all audio inputs, which can be bypassed for non-PCM audio.

Closed Captioning Conversion

FS4 supports Closed Captioning and the conversion of Closed Captioning between 2K/HD/SD and 4K/UltraHD formats – including full conversion of CEA-608 and CEA-708 standards. FS4 can preserve Closed Captioning even when converting between formats, removing the need to reinsert Closed Captioning after conversion.

Active Format Description

Automatically sets Active Format Description information to match the converted signal. This means AFD information does not have to be inserted after conversion and provides accurate information for devices that understand AFD.

Remote Configuration and Control

FS4 is network ready and supports SNMP monitoring and web-based remote control. Units can be connected to an Ethernet network via the built-in 10/100/1000MB Ethernet port, allowing control and configuration of multiple FS units from a web browser on a connected computer. Configurations can be saved and applied to multiple units, ensuring consistency and quick configuration in large installs.
